This Speaker System can "REAL" match the 2W ~ 20W SE tube amplifier !这种扬声器系统可以“真正的”匹配2 w ~ 20 w SE管放大器!

In period 1990 ~ 2000在1990 ~ 2000年期间
I have been try many speaker to match 2W ~ 20W SE tube amplifier .我已经尝试了很多演讲者匹配2 w ~ 20
w SE管放大器。
eg: Fostex , Tannoy 15"gold , Lowther PM, Telefunken 8" full range , Sada 8" full range , DIATONE P610 , Altec 604............ 例如:Fostex,高音喇叭15个“黄金,出手点,Telefunken 8“全系列,萨达8”,DIATONE P610全系列,604 ............亚many many .许多许多。




But , They not gave me a satisfied sound.但是,他们没有给我一个满意的声音。
I know , I need a over 12" diameter, real high sensitive , better bass response and better dynamic of full range speaker unit.我知道,我需要一个超过12”直径,真正的高灵敏度,更好的低音响应和更好的动态的全套喇叭单元。

Until, I got the Klangfilm KL-L405 at 2001 .直到我得到了Klangfilm KL-L405 2001。
It is a 14" full range speaker, about 100db sensitive, real high sensitive and good dynamic .这是一个“全部14扬声器,大约100 db敏感,真正的高灵敏度和良好的动态。
I have been try many different setup for KL-L405...我一直尝试许多不同的设置KL-L405……
At last, I got the verdict .最后,我得到了判决。
It need set at speaker cabinet and work with the tweeter speaker unit.它需要设定在议长内阁和工作的高频扬声器单元。

Although, many people said the KL-L405 is a full range speaker, In fact it has not the good high frequency response.尽管,许多人说,KL-L405是全方位扬声器,事实上它没有良好的高频率响应。

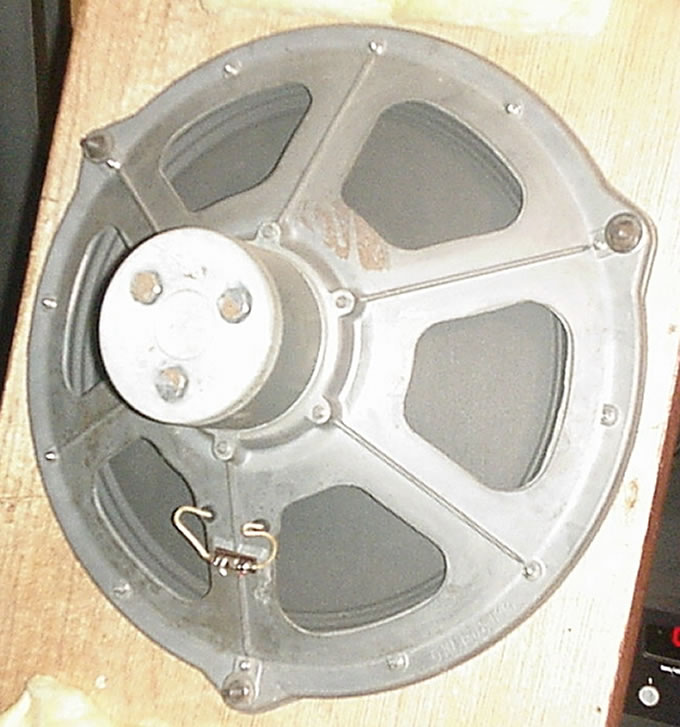

Klangfilm KL-L405Klangfilm KL-L405

Some info for Klangfilm KL-L405 enter there一些信息对于Klangfilm KL-L405进入那地

In period 2003 ~ 2005.在2003 ~ 2005年期间。
I tried many tweeter for match the KL-L405 .........我尝试了许多为匹配KL-L405 .........高频扬声器
eg: JBL 075 , 076 , 077 ,例如:JBL电子075,076,077,EV T350 , Klangfilm , Fostex ................T350 EV,Klangfilm,Fostex ................
Also , They not gave me the satisfied sound...同时,他们不让我满意的声音…
I got the verdict .我得到了判决。The tweeter need over 110db sensitive推主身份需要超过110分贝敏感, real tweeter can response over 20kHz , the sound color can match the KL-L405.,真正的高频扬声器可以响应超过20 khz,声音KL-L405颜色可以匹配。

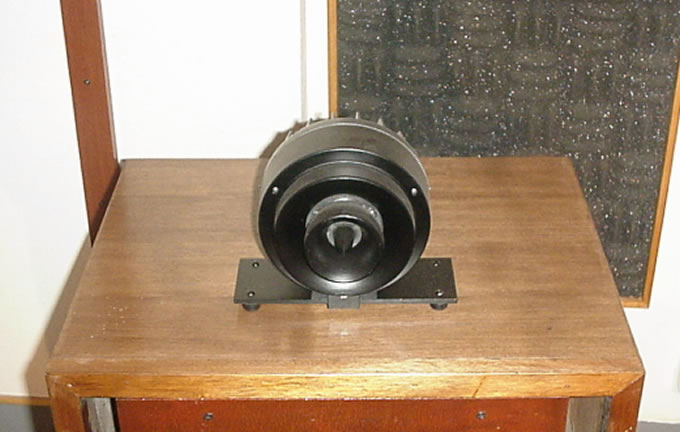

Gauss 1502高斯1502

At 2006 , I found the Gauss 1502 tweeter.在2006年,我找到了高斯1502高频扬声器。
It is a 112db sensitive and 22kHz high response tweeter with 20,000 gauss magnet.这是一个112分贝敏感和22 khz高响应高频扬声器与20000高斯磁铁。
Important , It 's sound color very match the KL-L405.重要的是,它的声音非常匹配KL-L405颜色。

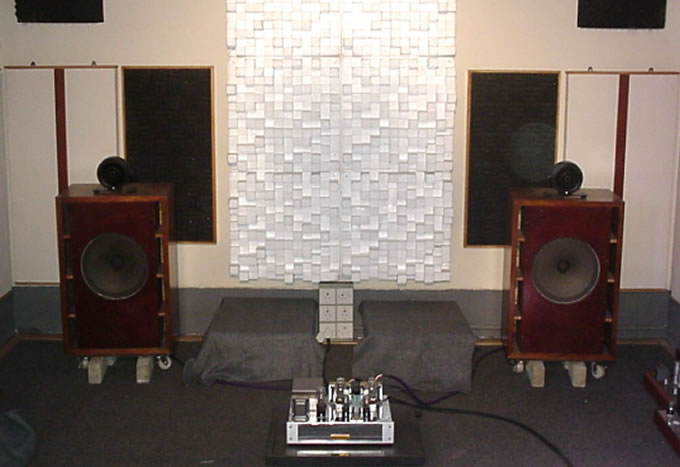

The speaker system with YSA300B SE power amplifier.扬声器系统YSA300B SE功率放大器。

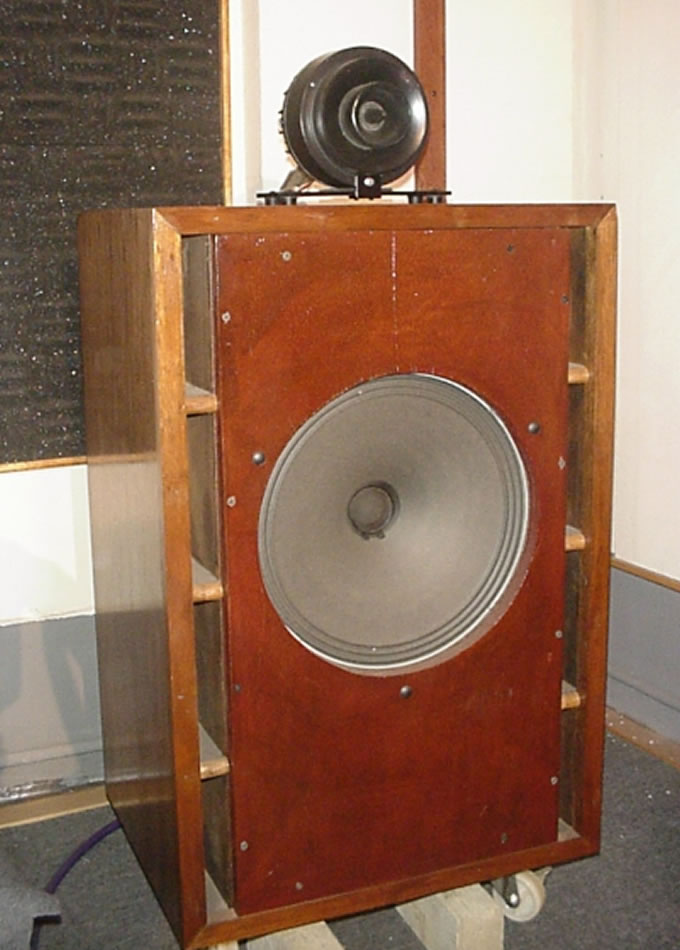

The cabinet and crossover.内阁和交叉。
